TrueVision LED delivers premium COB LED display Malaysia solutions — from ultra-fine pixel pitch command rooms to large-format retail and hospitality installations. Award-winning technology, seamless modular design, and stunning clarity for every application.
Industry-leading technology designed for exceptional performance and reliability

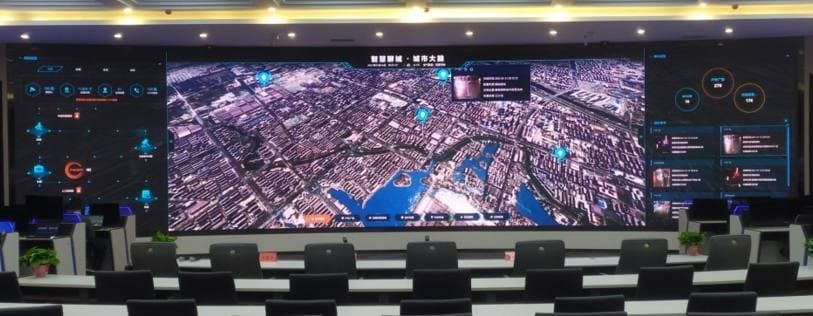

Indoor Fixed SMD HD Display Panel with European Product Design Award recognition. Features high protection, excellent flatness, and flexible installation options.
Advanced Flip Chip COB technology ensuring ultra-high contrast ratio up to 10,000:1, IP65 front protection, and maintenance-free operation with extremely low failure rate.
One screen. One cable. Total collaboration. Replaces your projector, whiteboard, and TV — with 10-point touch, wireless multi-screen projection, and dual OS built in.
Experience the next generation of LED display technology

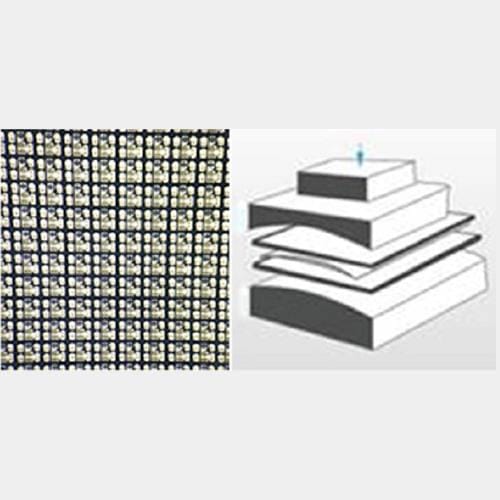

Three layers of protection effectively reduce lamp failure rate during extended use
Die-cast aluminium structure ensures high precision and perfect panel flatness
Power supply and receiving card dual backup ensures uninterrupted operation
Interchangeable modules without A/B distinction for easy storage and assembly
Waterproof, dustproof, anti-static, moisture-proof, and anti-bump design
Up to 170° horizontal and 160° vertical viewing angles for optimal visibility
Full front installation and maintenance for flexible use in any environment
COB technology reduces failure rate by one order of magnitude vs traditional SMD

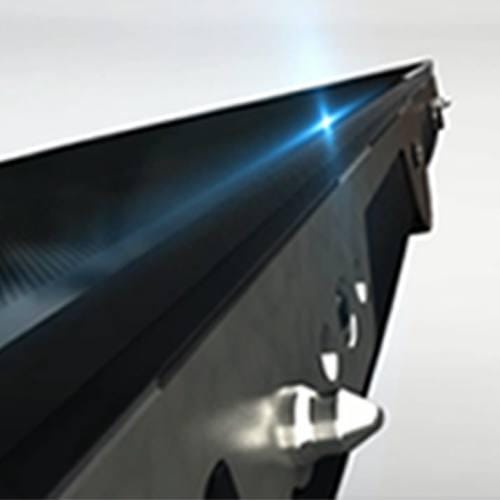

Most LED displays use SMD — exposed chips soldered to a board. Our BF Series uses COB where chips are sealed under a protective layer. The result: tougher, cleaner, and maintenance-free for life.
Only LED technology safe for direct hand contact. Smooth sealed surface.

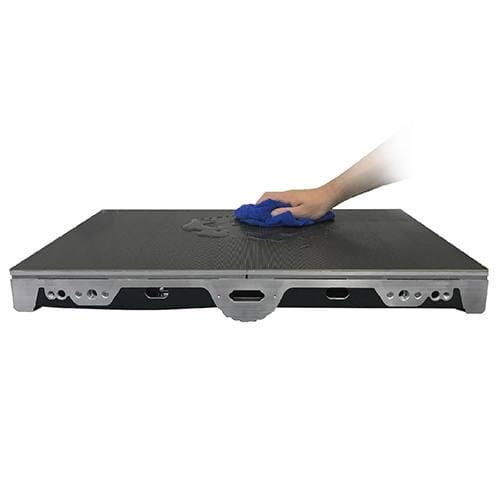

Wipe with a damp cloth. Safe in humid environments.
Failure rate reduced by one order of magnitude vs SMD.
No chip replacements ever. Boards are maintenance-free for life.
Built-in protection against static, dust, and mist.

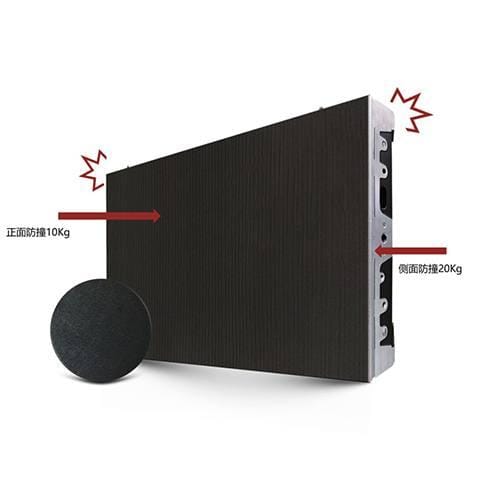

Anti-collision tested >10kg. Survives real-world contact.
| Feature | SMD Standard | COB — BF Series ✓ |
|---|---|---|
| Surface | Exposed chips | Sealed smooth ✓ |
| Touch safe | ✗ | ✓ |
| Front waterproof | ✗ | IP65 ✓ |
| Failure rate | Standard | 10× lower ✓ |
| Maintenance | Chip replacements | Free for life ✓ |
| Contrast ratio | Standard | 10,000:1 ✓ |
| Impact resistance | Fragile | >10kg tested ✓ |
| Cleanable | ✗ | Damp cloth ✓ |
Compare our product lines to find the perfect solution for your needs
| Specification | X15 | X19 | X24 | X29 | X39 | X59 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.56 | 1.95 | 2.4 | 2.9 | 3.91 | 5.95 |
| LED Type | SMD1212 | SMD1212 | SMD1415 | SMD2121 | SMD2121 | SMD2020 |
| Module Size (mm) | 250 × 250 | |||||
| Panel Size (mm) | 1000 × 500 × 48 | |||||
| Pixels Per Panel | 640×320 | 512×256 | 416×208 | 336×168 | 256×128 | 168×84 |
| Weight (kg) | 11.5 | 11.5 | 11.5 | 11.5 | 11 | 11.5 |
| Brightness (nits) | 800 | 800 | 1000 | 1000 | 1000 | 1000 |
| Refresh Rate (Hz) | 7680 | |||||
| Grayscale (bit) | 16 | |||||
| Viewing Angle (H/V) | 140° / 140° | |||||
| Colour Temperature (K) | 3200 ~ 9300 | |||||
| Power (W/m²) | 520 | 460 | 480 | 480 | 480 | 480 |
| Operating Temp (°C) | -10 ~ +40 | |||||
| Specification | BF0.7 | BF0.9 | BF1.2 | BF1.5 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.78 | 0.93 | 1.25 | 1.56 |
| LED Type | COB (Flip Chip) | |||
| Module Size (mm) | 150 × 168.75 | |||
| Panel Size (mm) | 600 × 337.5 × 37.7 | |||
| Pixels Per Panel | 768×432 | 640×360 | 480×270 | 384×216 |
| Weight (kg) | 4.5 | |||
| Brightness (nits) | 1000 | 800 | 800 | 800 |
| Refresh Rate (Hz) | 3840 | |||
| Grayscale (bit) | 16 | |||
| Viewing Angle (H/V) | 170° / 160° | |||
| Contrast Ratio | 10,000:1 | |||
| IP Rating (Front) | IP65 | |||
| Power (W/m²) | 525 | 390 | 375 | 370 |
| Operating Temp (°C) | -10 ~ +40 | |||
From mission-critical control rooms to luxury home cinemas — TrueVision LED displays perform where it matters most.

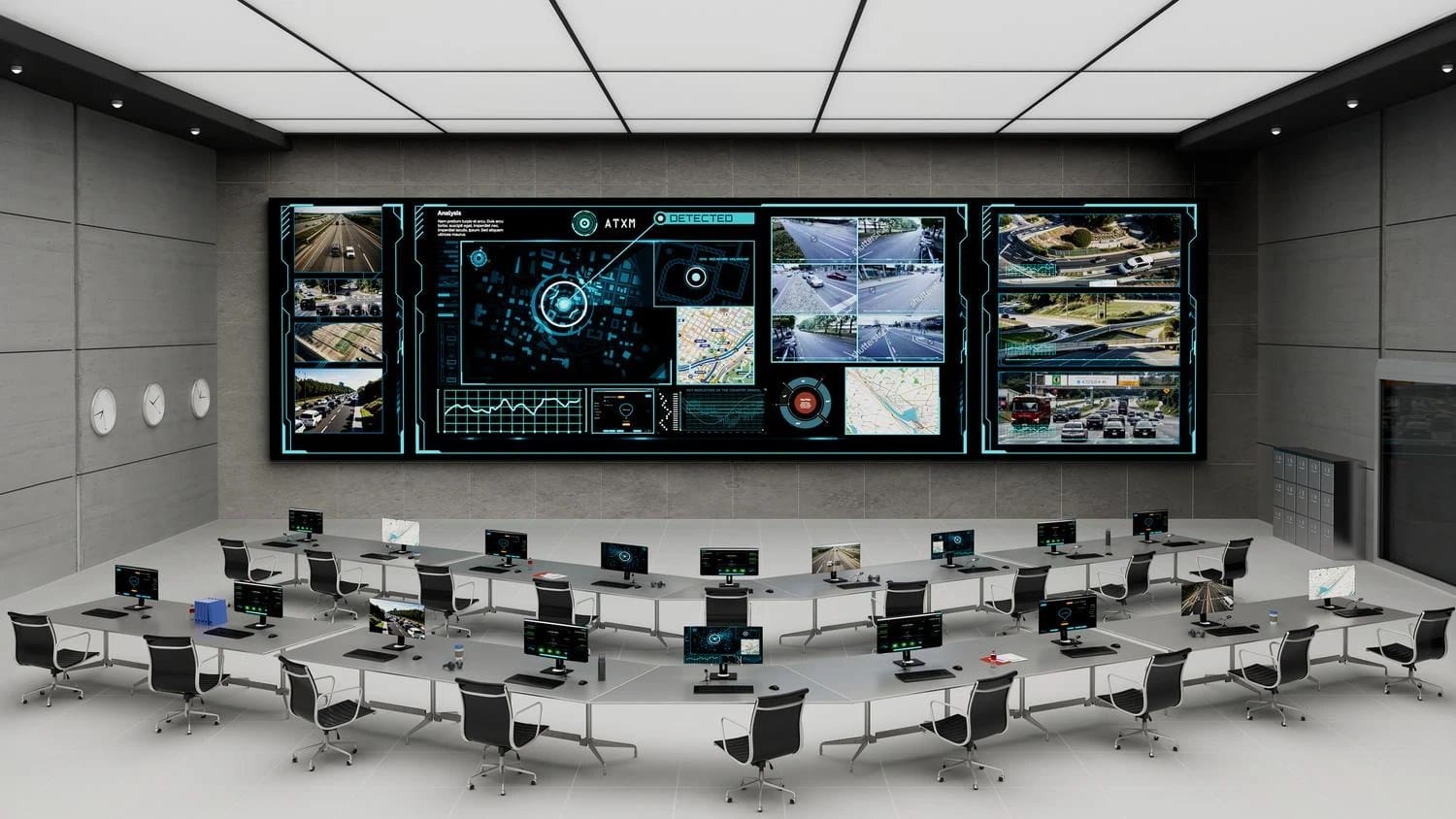

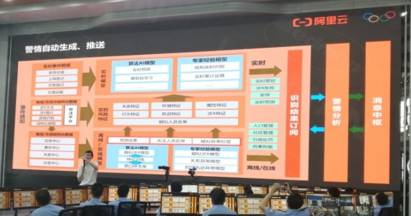

Mission-critical monitoring. 24/7 reliability.
Lobbies, boardrooms, experience centres.

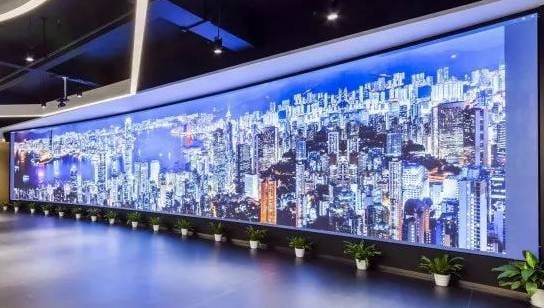

Airports & stations. High-brightness displays.

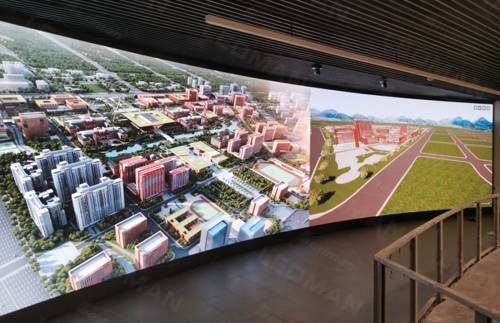

Interactive classrooms & lecture halls.

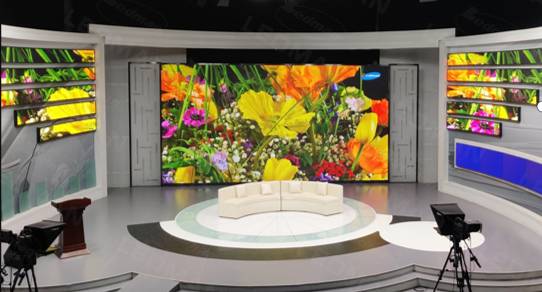

TV studios & newsrooms. Camera-perfect.
High-brightness outdoor & creative screens.
Trusted by leading organisations across Malaysia
The iconic Ice & Snow Five Rings at the 2022 Beijing Winter Olympics Opening Ceremony were powered by the same COB LED technology in every TrueVision LED display. Seen by over 2 billion viewers worldwide — without a single failure.
The same platform was selected as the official display supplier for the 19th Asian Games. When reliability is non-negotiable, COB technology is the only choice.
End-to-end solutions from consultation to ongoing support
Our expert team provides comprehensive site assessments and custom LED display recommendations tailored to your specific requirements, environment, and budget.
Professional installation by certified technicians ensuring optimal display performance, structural integrity, and seamless integration with your existing systems.
Keep your LED display in peak condition with our comprehensive maintenance packages. We handle repairs, replacements, and preventive care to maximise display lifespan.
Responsive technical support available 8 hours × 5 days, with quick response times and remote assistance capabilities to minimise any display downtime.

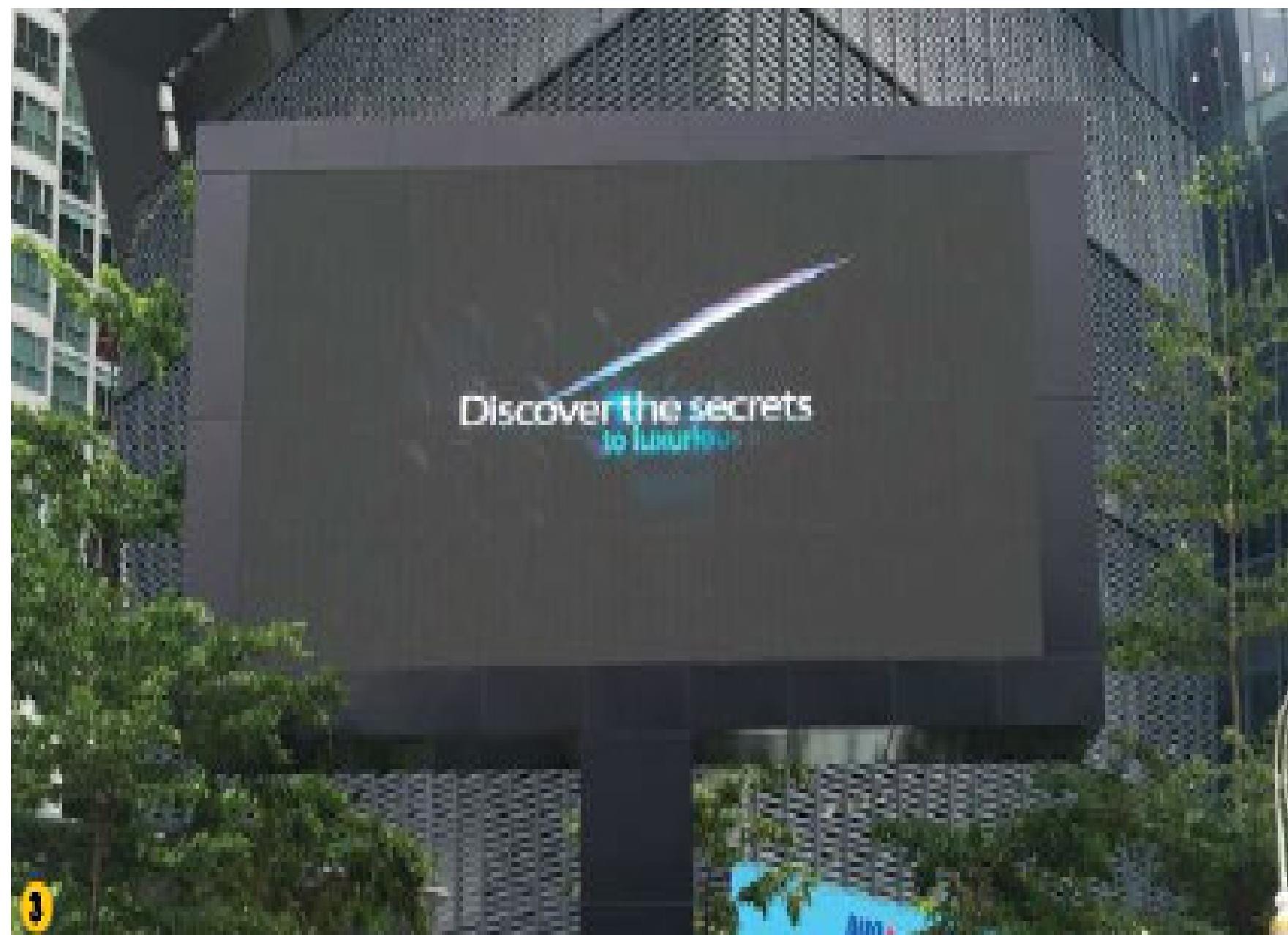

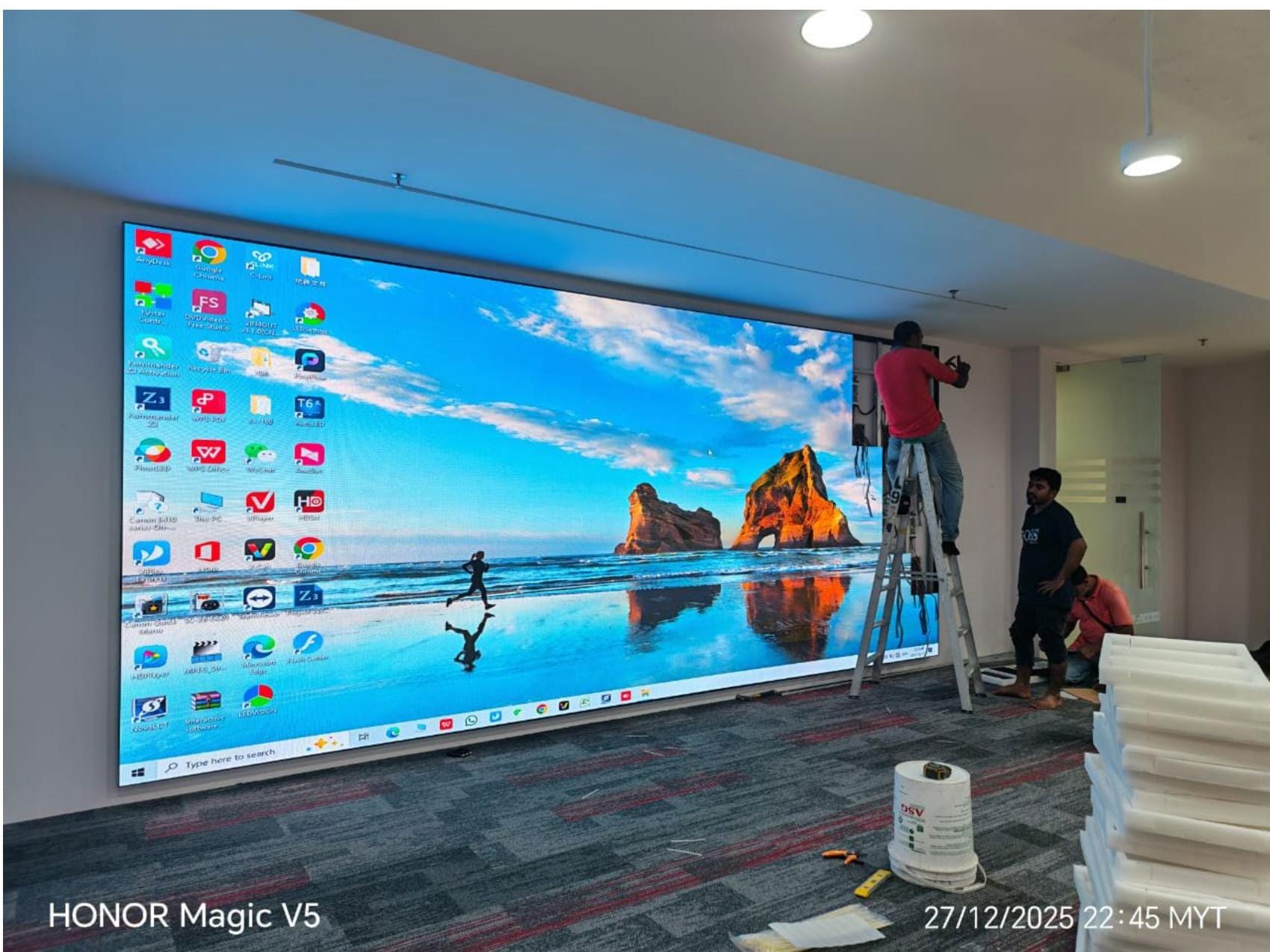

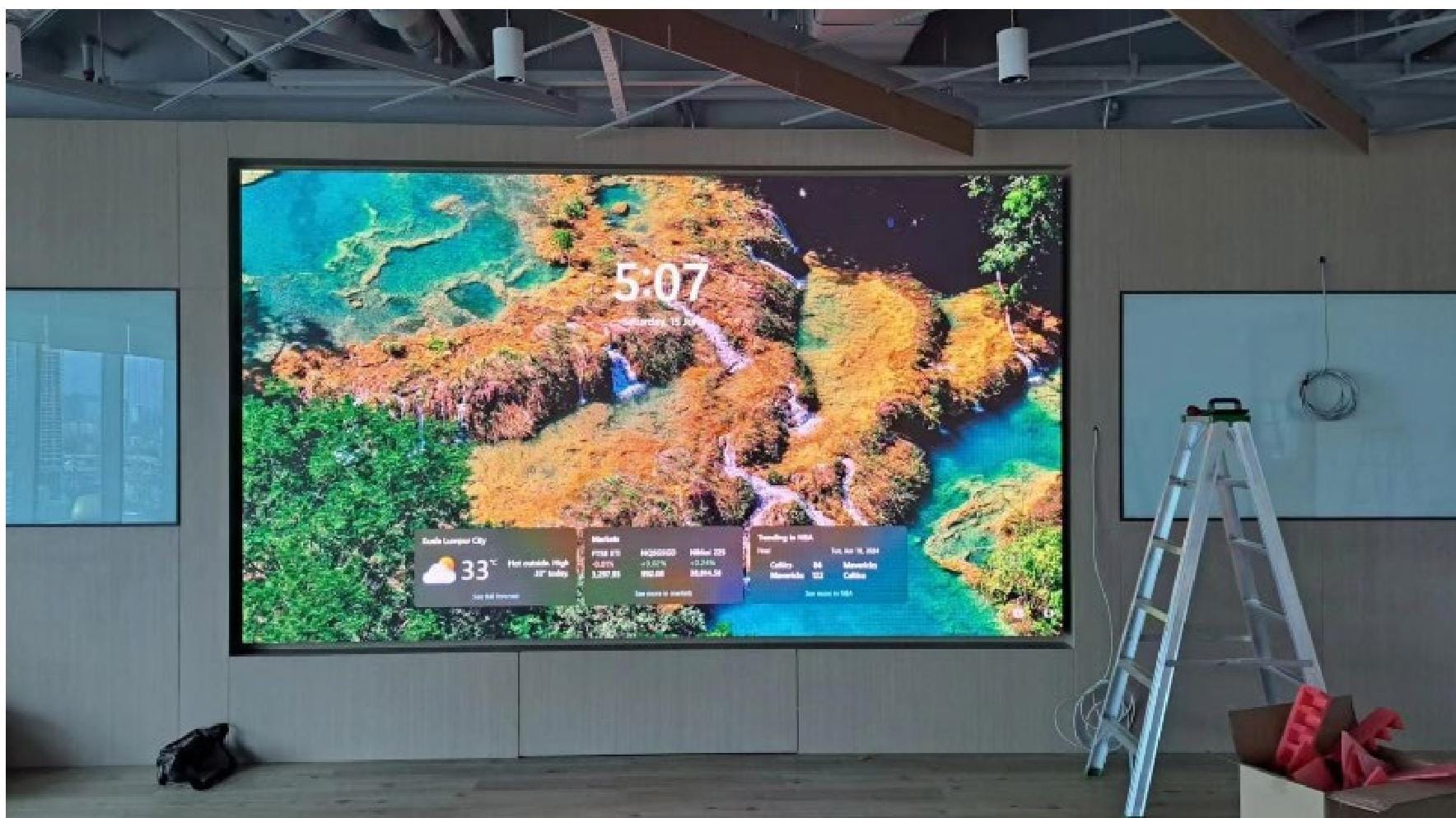

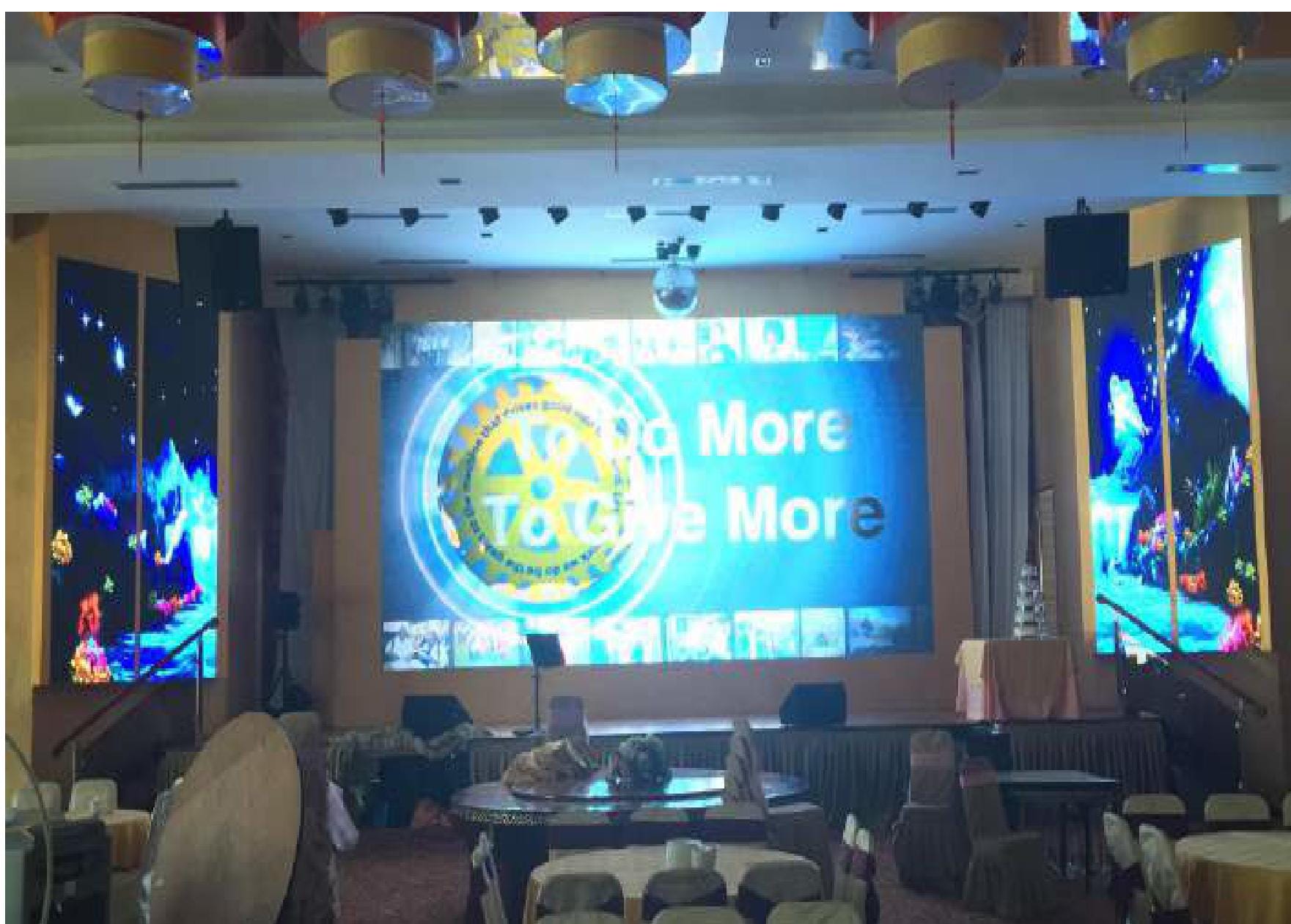

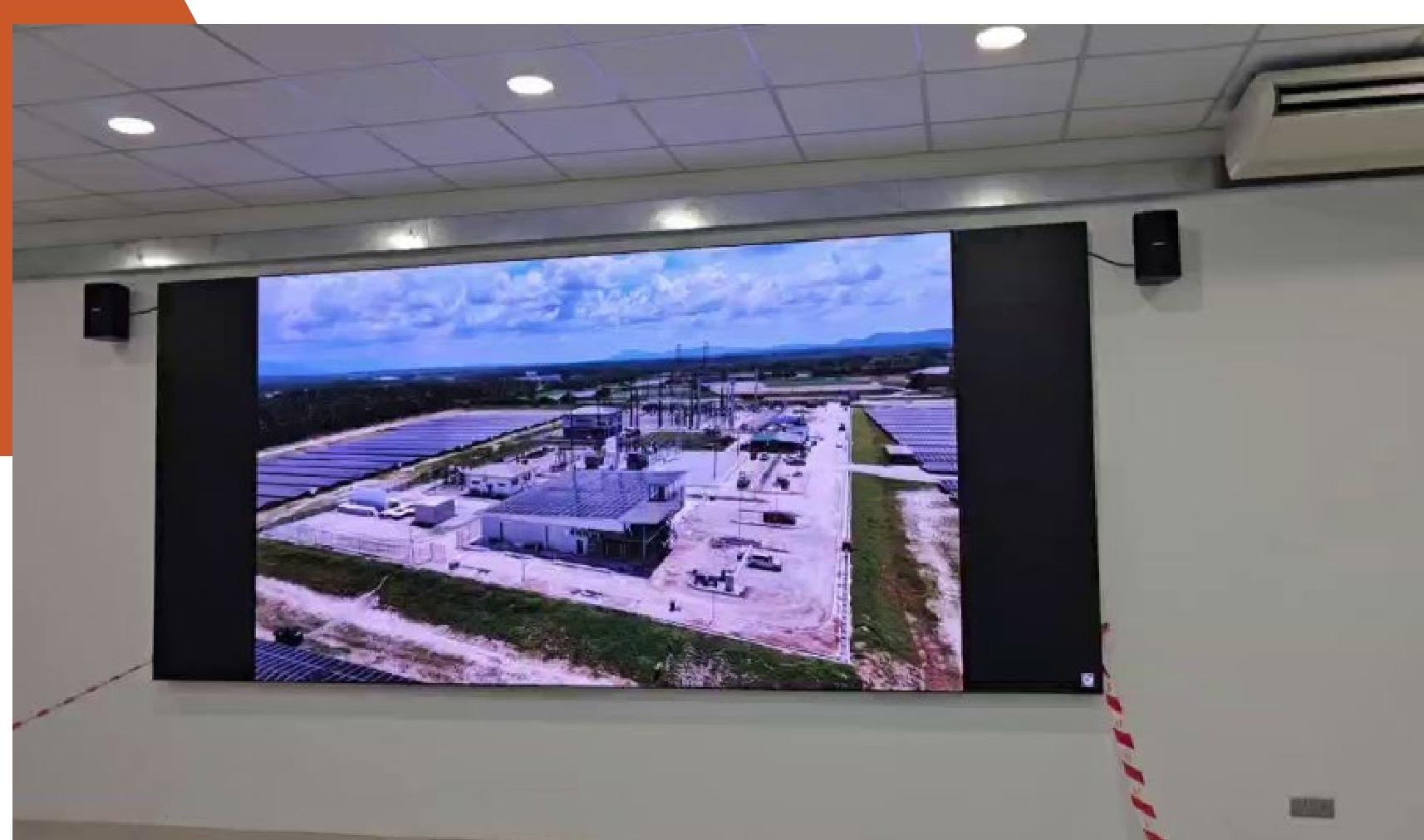

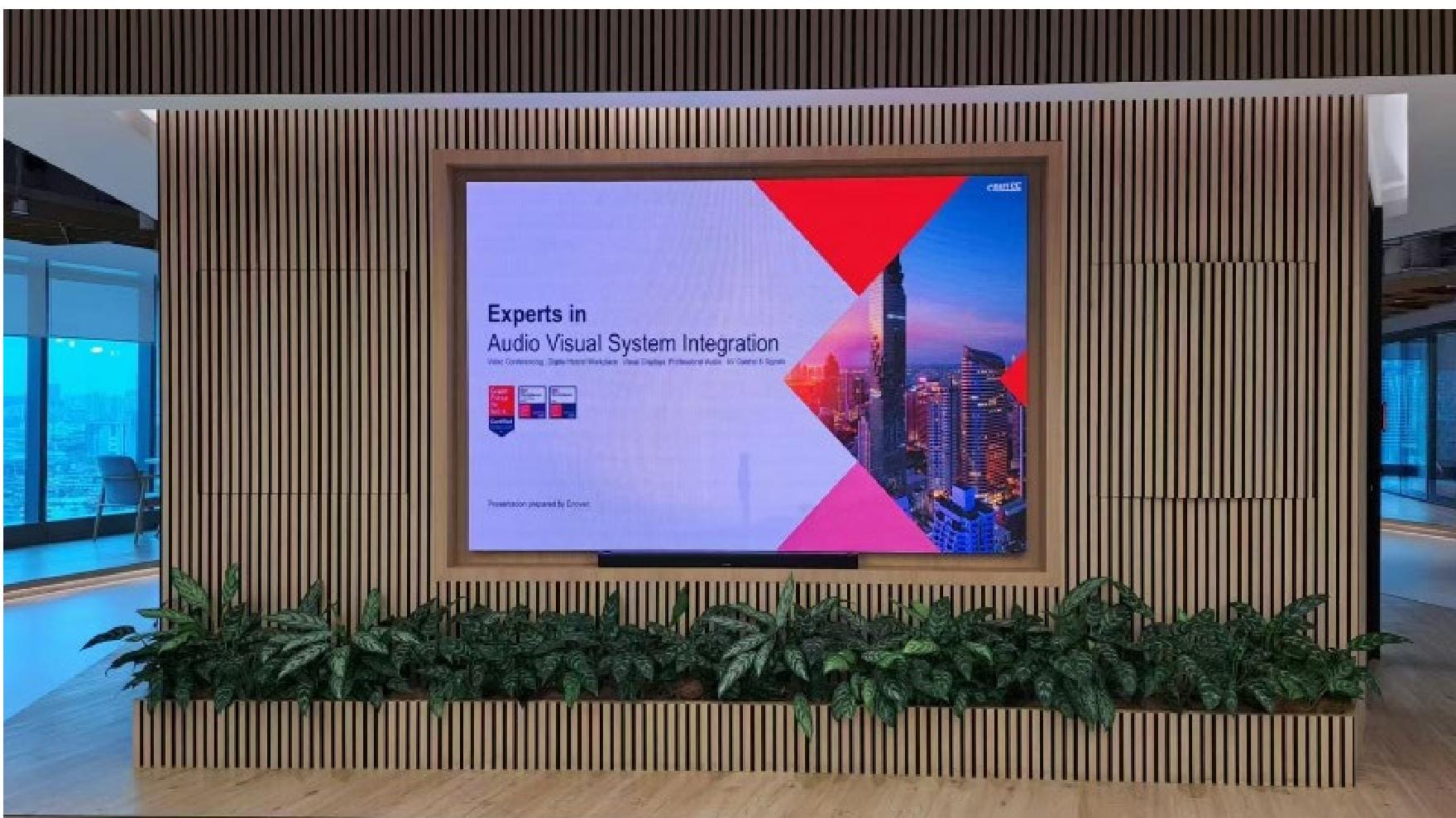

Real-world LED display deployments from our global portfolio — spanning transportation hubs, control rooms, broadcast studios, and more across 6 continents.
Two decades of R&D recognised by the world's leading design and technology award bodies.
International recognition for outstanding product design
European benchmark for innovative display technology
International Design Awards — industrial design excellence
Global recognition for creative design achievement
Chinese Display Industry Association — COB recognition
Two decades of globally protected R&D innovation
Contact our team for a customised LED display solution tailored to your specific requirements.
